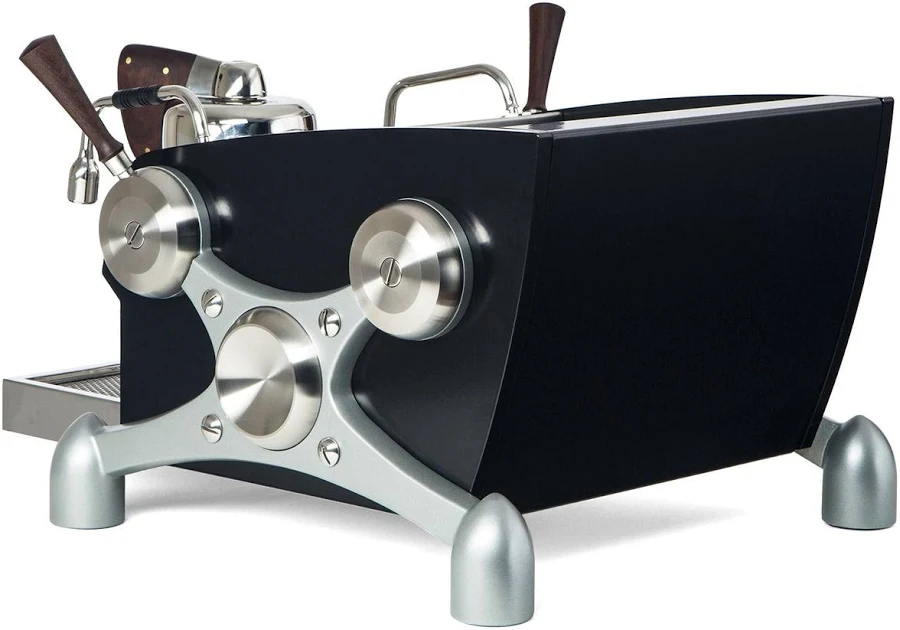

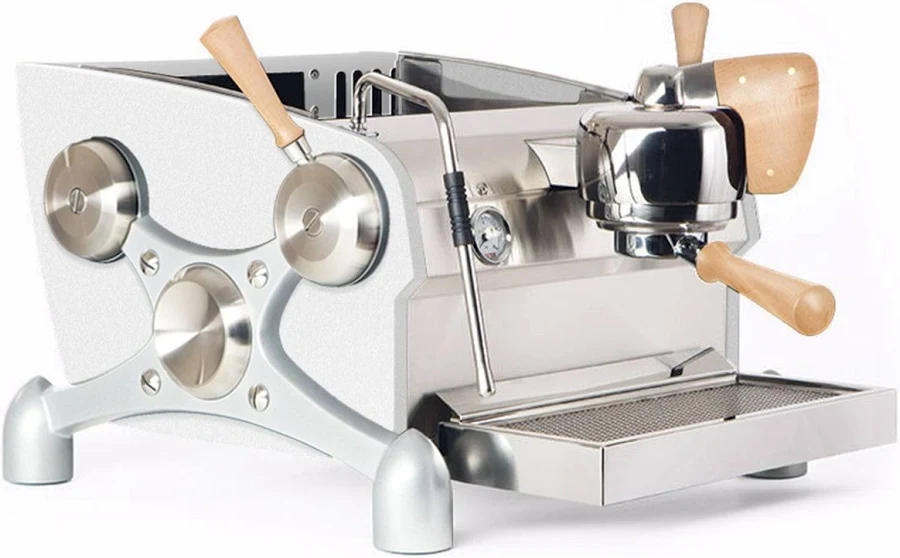

☕ Slayer Espresso V3 – Specifications

📏 Dimensions

2-Group

• Width: 77.5 cm
• Depth: 67.5 cm
• Height: 43.5 cm
• Weight: 100 kg

3-Group

• Width: 103 cm
• Depth: 67.5 cm
• Height: 43.5 cm
• Weight: 139 kg

🔥 Boiler System

☕ Brew Boilers

• 2-group: 2 × 1.7 L (600W each)
• 3-group: 3 × 1.7 L (600W each)

♨️ Pre-Heat Boiler

• 2-group: 3.3 L (1000W)
• 3-group: 5.4 L (1000W)

💨 Steam Boiler

• 2-group: 7.4 L (3500W)
• 3-group: 12 L (4500W)

⚡ Power Requirements

• Voltage: 220–240V (single phase)
• Power draw: ~5.7 kW (2-group) up to ~8.7 kW (3-group)
• Optional three-phase power support

🎛️ Core Features

🎯 Flow Control System

• Patented needle valve flow control
• Adjustable water flow during extraction
• Enables “Slayer-style” espresso profiles (slow pre-infusion → ramp-up)

🌡️ Temperature Stability

• Independent brew boilers per group
• Pre-heat system for consistency shot-to-shot
• PID-controlled precision temperature adjustment

🧪 Pre-infusion system

• Programmable pre-brew phase
• Helps reduce channeling and improve sweetness

🔁 Durability

• Groupheads rated for ~1 million cycles
• Built for heavy commercial café use

🧠 What makes it different (simple)

• You don’t just “press a button and brew”
• You control water flow like a lever system + modern electronics
• Designed for specialty coffee extraction experimentation
